Description

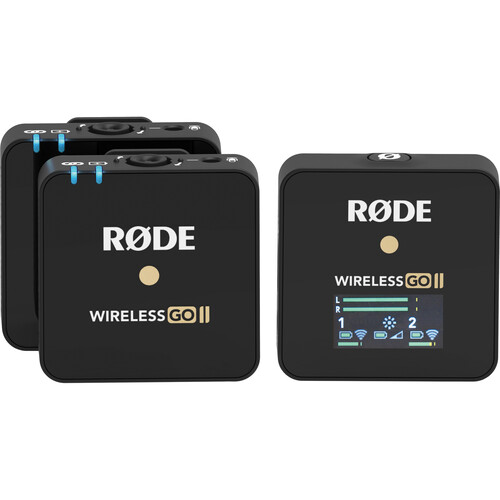

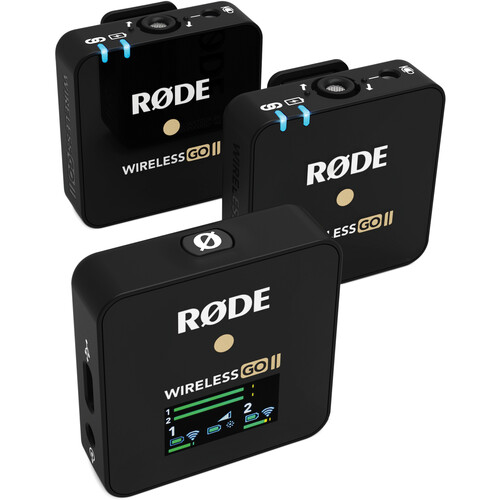

This is a technical specification sheet for a wireless microphone system. Here’s a breakdown of the key features:
Wireless Technology:
Digital 2.4 GHz wireless transmission
Non-diversity receiver
Maximum operating range: 656.2′ / 200 m
Transmitters:
2x Bodypack transmitters with built-in microphones
Frequency range: Not specified by manufacturer
RF output power: Not specified by manufacturer
Audio input level: -20 dBV (max)
Auto-level control: No
Receiver:
Beltpack receiver with belt clip and internal antenna
Number of audio channels: 2
Audio I/O: 1x 1/8″ / 3.5 mm TRS female unbalanced mic output
Gain range: -24 to 0 dB (12 dB steps)
USB/Lightning connectivity: 1x USB-C female (audio, bus power, charging)
Microphone:
Built-in electret condenser capsule with omnidirectional polar pattern
Frequency response: 50 Hz to 20 kHz
Equivalent noise level: 22 dB A-weighted
Maximum SPL: 100 dB SPL
Power and Battery Life:
Built-in rechargeable battery with 2-hour charging time and approximately 7-hour battery life
Can also operate on bus power (USB)
Other Features:
Built-in recorder with WAV format, 24-bit, 48 kHz sample rate
Mobile app compatibility
Encryption: 128-bit
Time code support: No
Latency: 3.5 to 4 ms
Dimensions and Weight:
Dimensions: 1.7 x 1.8 x 0.7″ / 4.4 x 4.5 x 1.8 cm
Weight: 1.1 oz / 32 g (transmitter) and 1.1 oz / 30 g (receiver)
