FeelWorld T7 Plus 7″ IPS On-Camera Monitor with 3D LUT, Waveform & Vectorscope

  • 7″ 1920 x 1200 Display

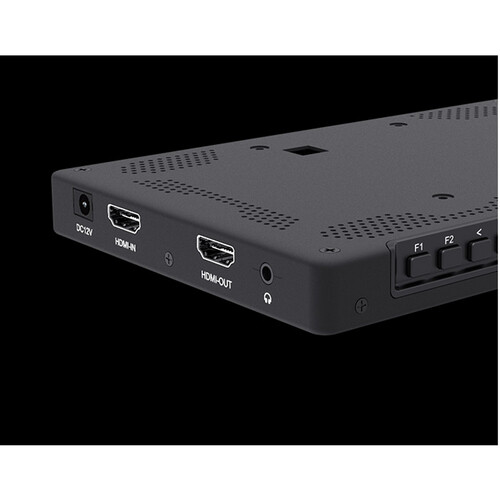

  • 4K HDMI In and Out
  • Wide 160° Viewing Angle
  • 1200:1 Contrast, 450 cd/m² Brightness
  • Built-In Waveform Monitoring
  • Mini Hot Shoe Mount
  • Two 1/4″-20 Threads
  • F970 Battery Plate
  • Included Sunshade



FeelWorld T7 Overview

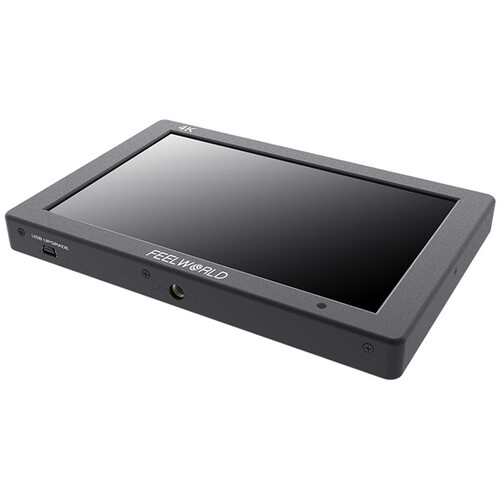

Upgrade your on-camera viewing experience while shooting in the field to a Full HD monitor with the lightweight FeelWorld T7 Plus, a lightweight 7″ IPS monitor outfitted with simultaneous vectorscope, histogram, and both audio phase and level monitoring. The T7 Plus supports 4K HDMI in and out, and it uses Rec. 709 color standard with color calibration for accurate color reproduction and vivid image viewing. The 1/4″-20 threads on the top and bottom of the monitor allow you to mount it on the included mini hot shoe mount adapter and secure it to the top of your camera.

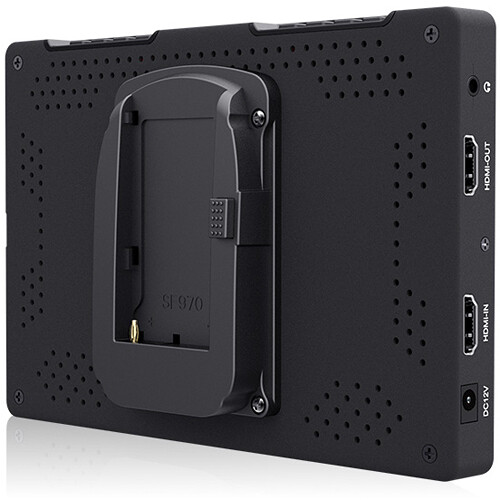

The monitor boasts 1200:1 contrast and 450 cd/m² brightness, as well as an F970 battery plate on the back panel. The operating system of the T7 Plus includes tools for framing, focus, and exposure such as image flip, zoom, and anamorphic modes. Up to 32 custom 3D LUTs can be loaded into the interface using the USB adapter for intuitive color calibration. Further customization can be achieved by programming the onboard button controls as shortcuts to these various modes for adaptability on location.

Key Features

Ultrathin 18mm thickness
Full HD 1920 x 1200 resolution
323 ppi pixel density prevents the eye from defining individual pixels
Durable, lightweight aluminum alloy housing
160° viewing angle ensures clear image as operator shifts position

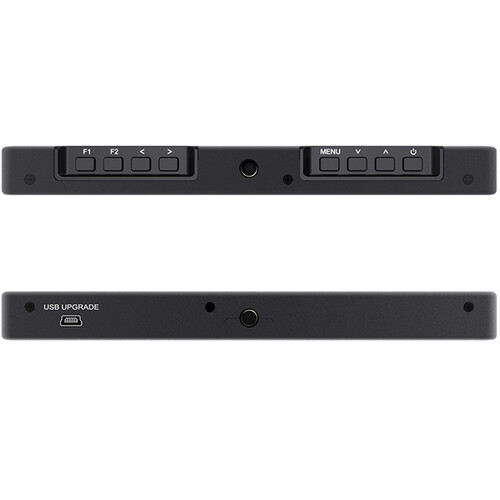

Easy button-based operation with custom shortcut keys
Mini hot shoe adapter with adjustable 180° viewing angle and 360° rotation at the base
Sunshade for increased visibility outdoors

Custom 3D LUTs

Import up to 32 files by connecting with USB adapter cable and interface

Waveform Monitoring

  • Choose from RGB, YUV, and Y parade
  • Vectorscope, histogram, audio, and level displays
  • Shows all technical aspects of video and audio at once while monitoring visual
  • Functions can be opened separately or all together

Video Assist Functions

  • Anamorphic mode (1.3x, 2.0x, 2.0x mag, user-defined adjustment: 1.20X~2.00X)
  • Center marker
  • Check field (red/green/blue/mono)
  • Color temperature
  • False color
  • Histogram (RGB1, Y, RGB2)
  • Image flip
  • Image freeze
  • Nine grid
  • Peaking focus assist (color switch capabilities)
  • Pixel to pixel
  • Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
  • Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
  • Scan mode (under, over)
  • Waveform (RGB, Y, YUV)
  • Zebra
  • Zoom (4x, 9x, 16x)
